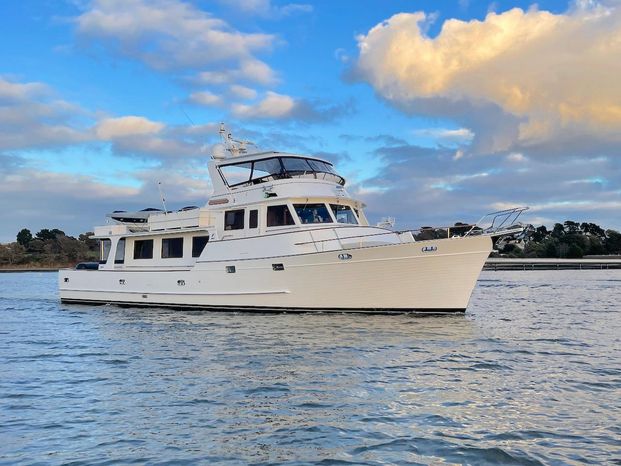

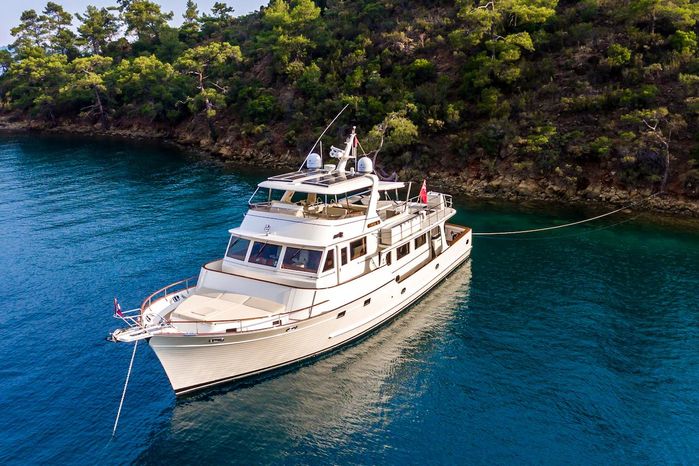

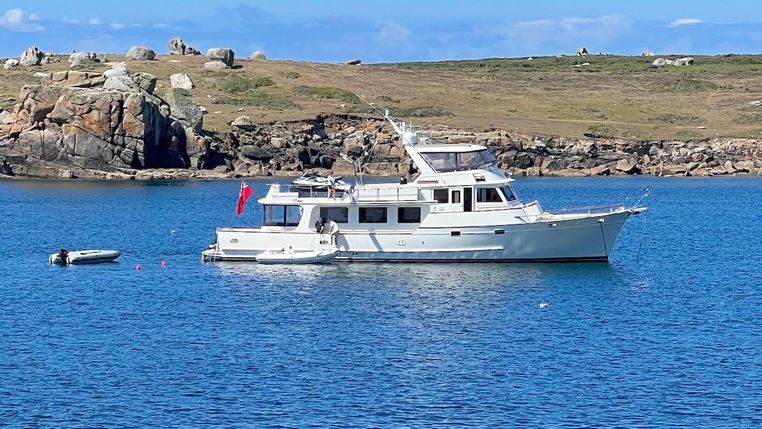

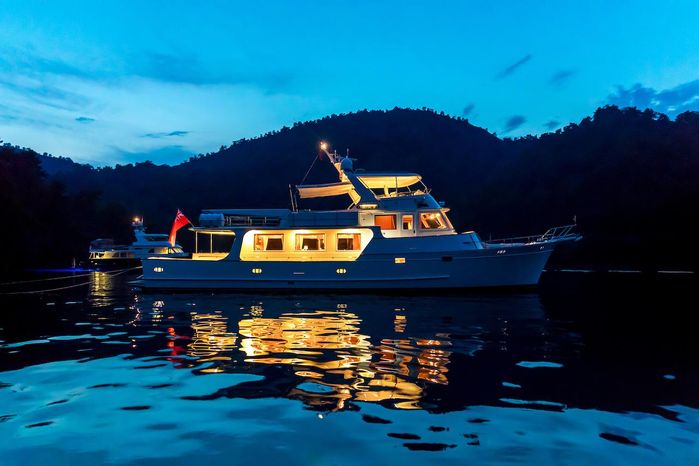

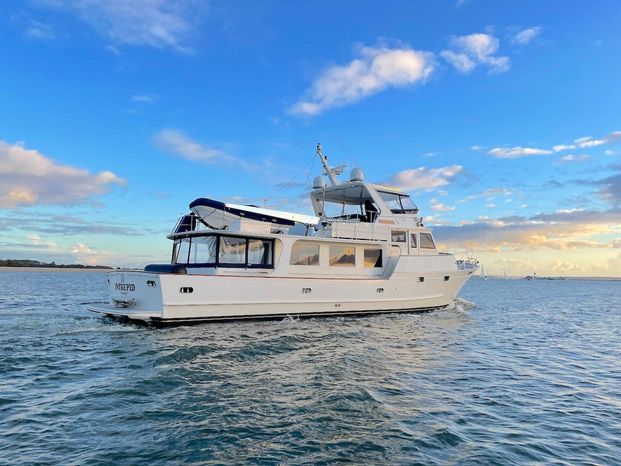

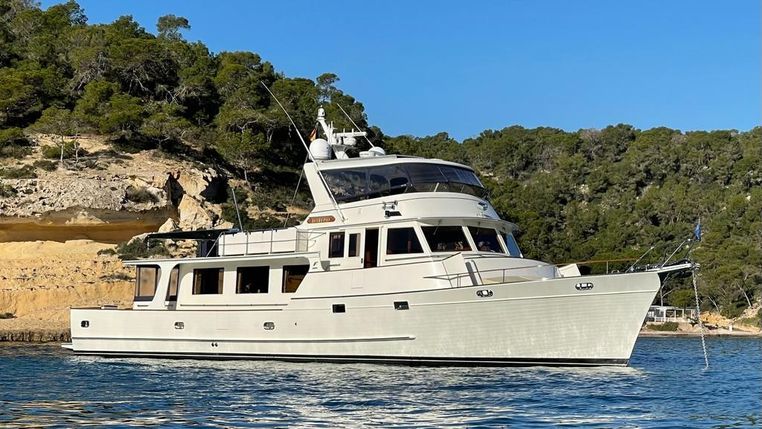

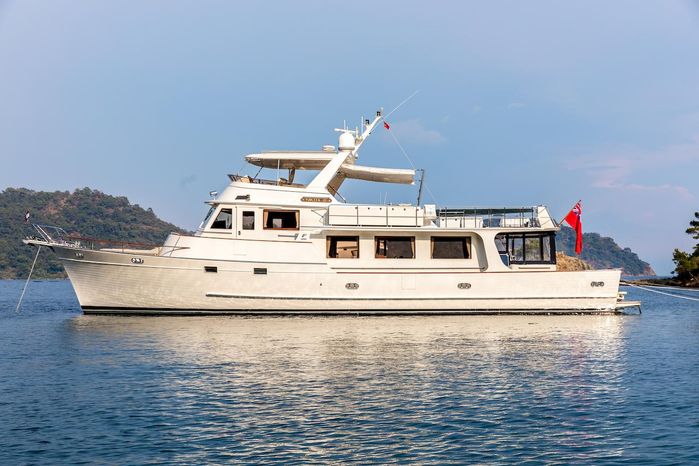

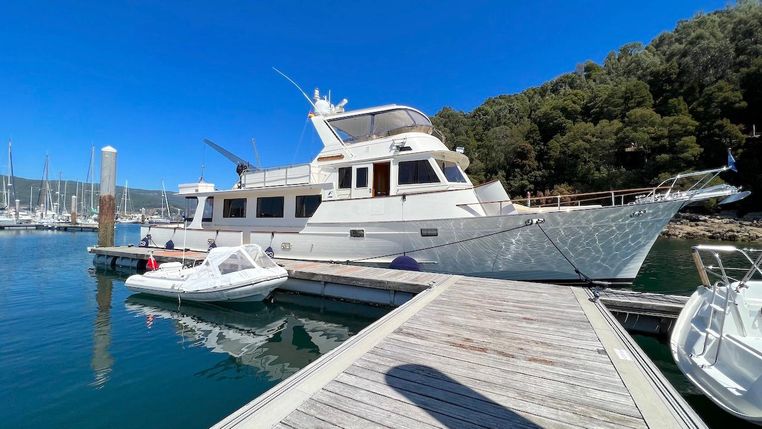

2004 Fleming 75

Speed and Distance

Cruising Speed 9.5kn at 1150 RPM (Range = 2300 miles)

Max Speed 15.2kn at 2000 RPM (Range = 675 miles)

Low Speed 5.5kn at 800 RPM (Range = 4260 miles)

Dimensions

LOA* incl swim and anchor platforms 80ft 1in

Length on Deck 75ft 0in

Max Bridge Clearance  20ft 6in

LWL 68ft 10in

Min. Draft 5ft 3in

Cabin Headroom:

VIP front cabin: 6ft 4in

Owners cabin: 6ft 7in

Triple cabin: 6ft 7in

Engine room: 6ft 7in

Salon: 6ft 10in

Pilot house: 6ft 8in

Weight

Displacement 74,842 kg - full load

RCD

RCD Category: A

Max Passengers: 25

Liferaft(s) and Capacity

2 x liferafts:

Liferaft 1: 8 person

Liferaft 2: 6 person

Tankage

Fuel:

QTY: 4 tanks - 11,356 litres total capacity across 4 tanks

Tank Material: FRP with vinyl-ester resin

Fresh Water:

QTY: 3 tanks - 1,892 litres (total) across 3 tanks that are all connected to each other

Tank Material: aluminium

Black Holding:

QTY: 1 tank - 946 litres

Gray Holding:

QTY: 1 tank - 946 litres

Solid fiberglass hull with simulated planking grooves and integral guard.

Keel extends below running gear

Vinylester resin used in outer laminations

Epoxy barrier coat - below the waterline

White gelcoat above waterline and for all components

Construction Refit

All underwater sea cocks, skin fittings and hose tails replaced (2023)
Cutlass bearings (4) replaced (2023)
Hull antifouled (2023)
Underwater running gear polished and painted with PropSpeed (2023)
New anodes (2023)

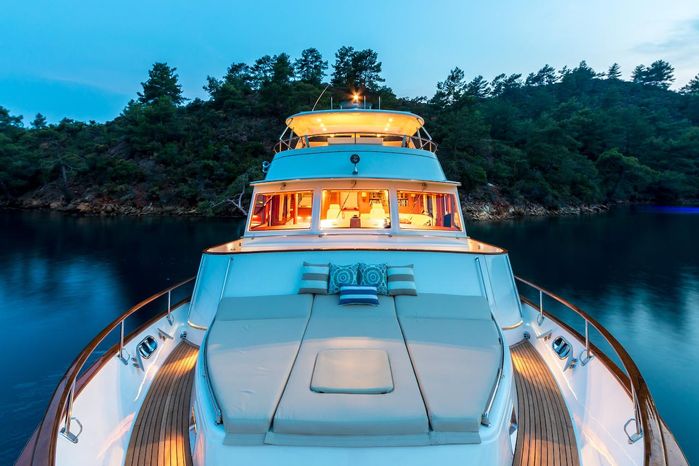

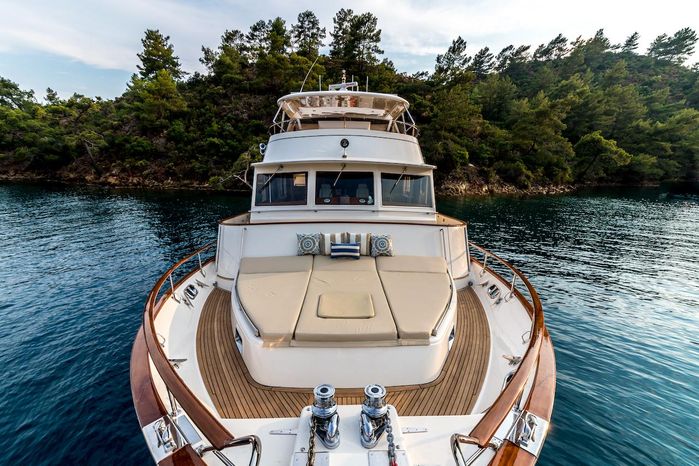

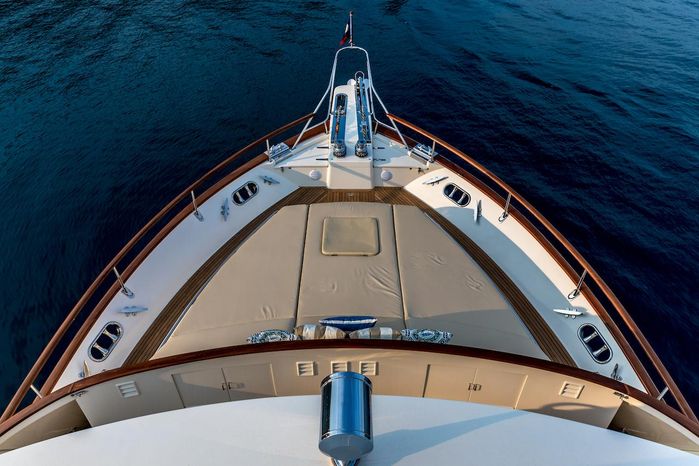

Teak decking on the foredeck

Teak decking on flybridge seating areas

Teak decking on the swim platform

Hydraulic rotating passerelle on swim platform

All handrails 316-grade stainless steel (s/s)

Stainless steel, CE-approved ports, and skylights

Tempered window glass

S/S roller chocks with s/s 15” cleats

Twin Maxwell 3500 hydraulic anchor windlasses

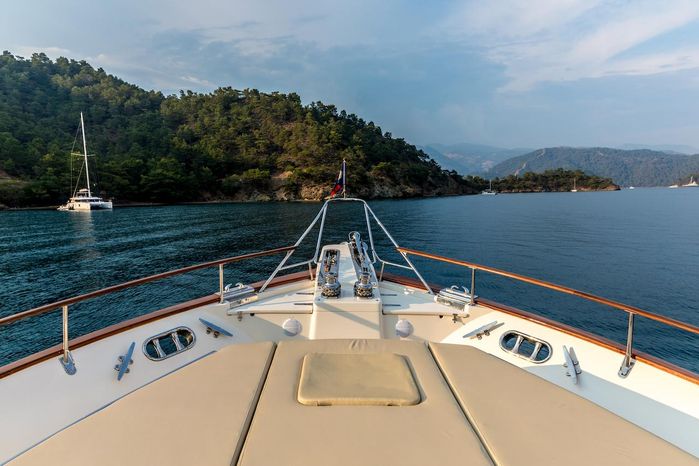

Anchor platform with twin anchor rollers and chain stopper

Bow pulpit

Portuguese bridge with doors to fwd side decks port and stbd

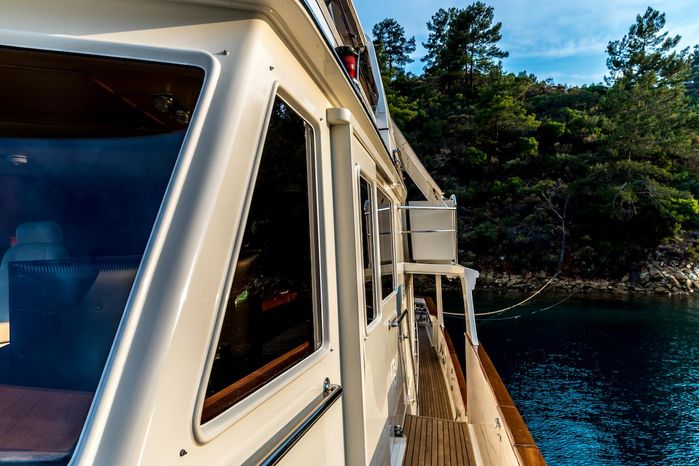

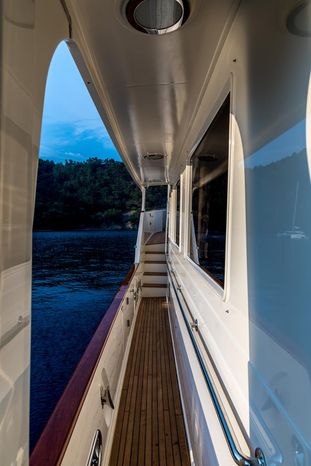

Wide side decks along both sides of the boat

Inward-opening bulwark doors with s/s sill plates

Generous cockpit with electric warping winches

Enclosed shower fittings convenient to the inward-opening transom door

36” wide FRP swim step with retractable swim ladder deployable from water

Curved oval-section s/s ladder to the boat deck

Walk-in access to engine room and crew’s quarters

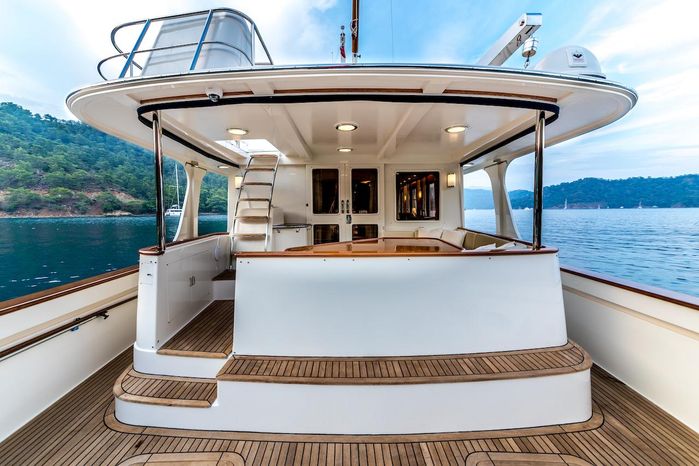

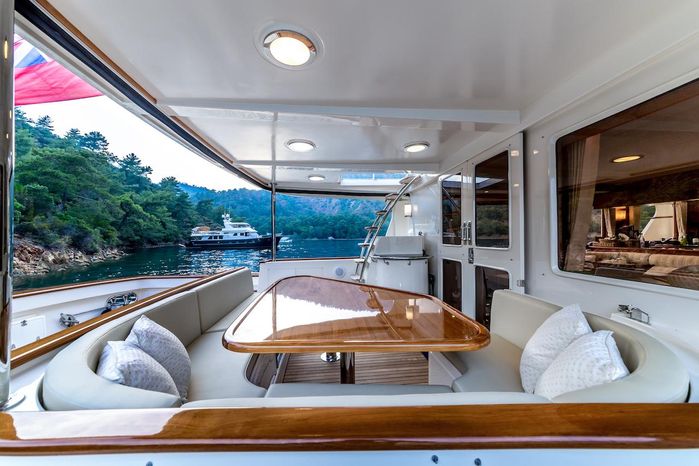

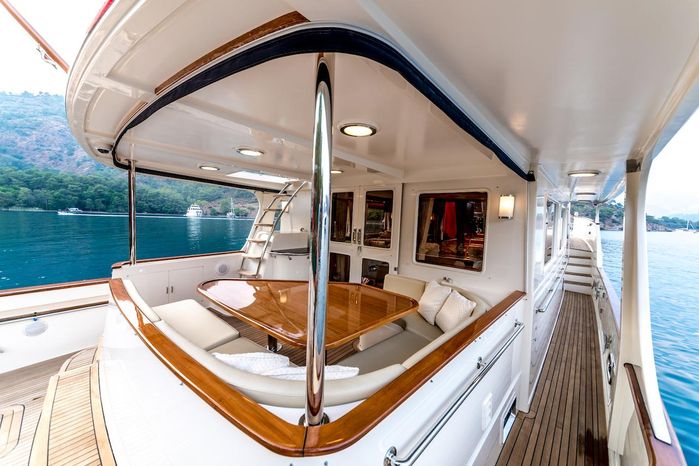

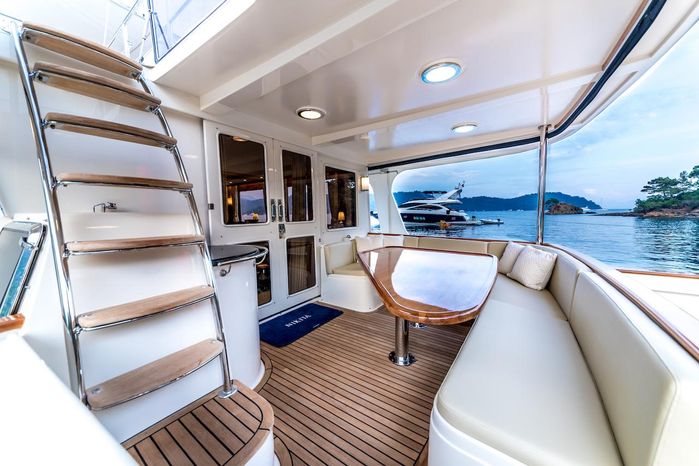

Covered California deck with seating, table and counter

Exterior Refit

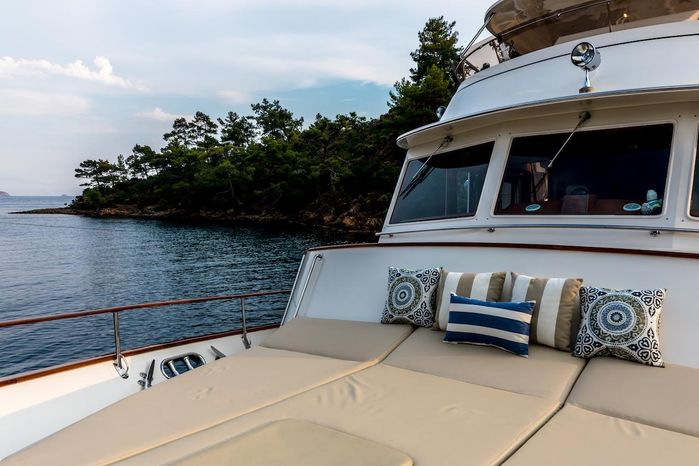

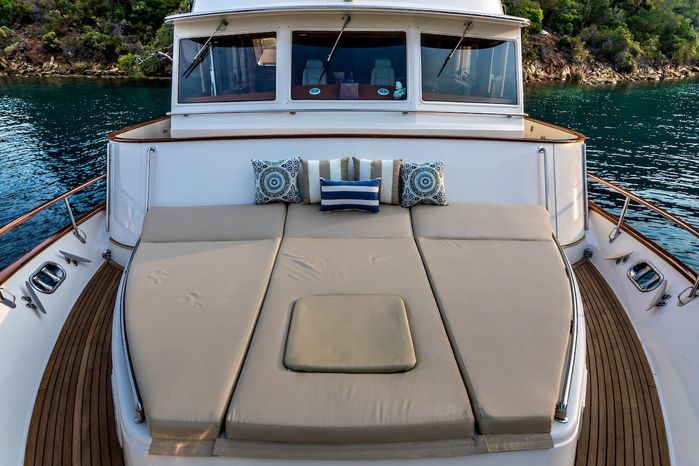

New bow sun pad cushions (2023)
New cushion foam for Californian cockpit, and Flybridge dining area, lower sofa and upper dinette (2023)
Removed and remounted all fairleads and cleats and resealed (2023)
Localised teak repairs to foredeck (2023)
All exterior woodwork revarnished (2023)
Radar Mast removed, and re-powder coated (2023)
Passarelle removed and re-powder coated, and ram painted (2023)
Re-varnish flag staff, burgee staff and boat hook (2023)
Padded crane weight cover made (2023)
Two new Gaggaenau BBQ/ grills on flybridge (2023)
New storage box made and fitted to boat deck (2023)

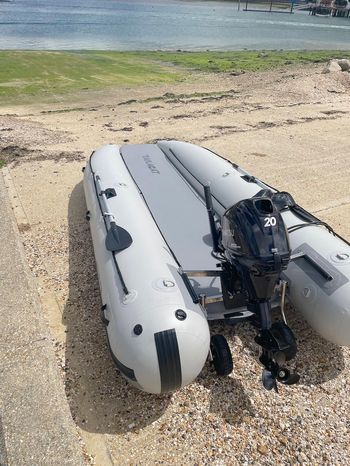

Outboard bracket fitted to wing locker (2023)
All new exterior covers to seating, tables, Californian cockpit, Flybridge helm enclosure, Williams jet tender (2021)
Additional tender folding cleats fitted to bathing platform (2021)
New electronic Yale lock on the deck door down to Crew quarters and engine room (2021)
Capstans serviced, new gypsys (2021)
Windlasses serviced (2021)
New Vitrifrigo fridge/ice maker on flybridge (2019)
Re-caulked the windows and hatches with new Sikaflex (2016)-(2019)
Dismounted all port holes and resealed them (2016)-(2019)
Sunshade on flybridge lower seating area (2019)
New fabric on all sofas on flybridge & California deck (2019)
New Plexiglas on doors and hatches (2019)
Sunshades for all windows (2017)
2 new larger tables on flybridge area and 1 on California deck all 3 high gloss varnished (2017)
New Hardtop (2016)

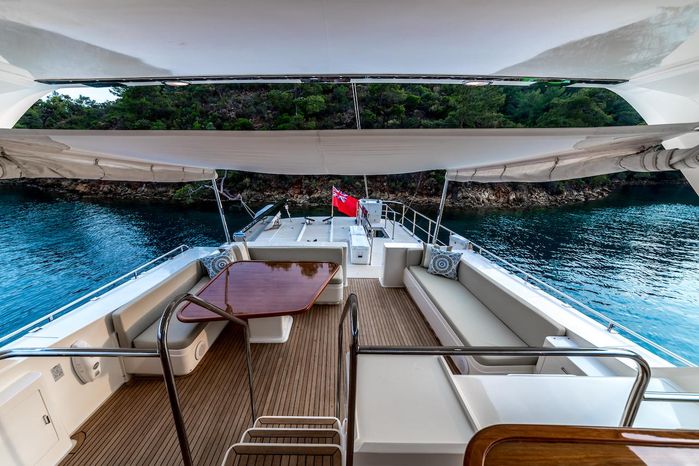

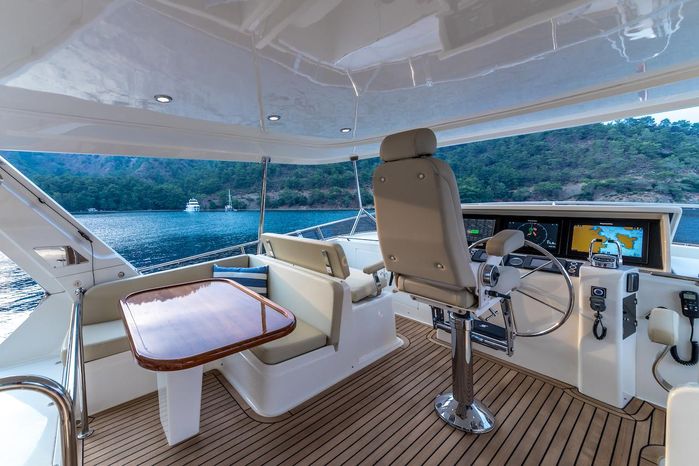

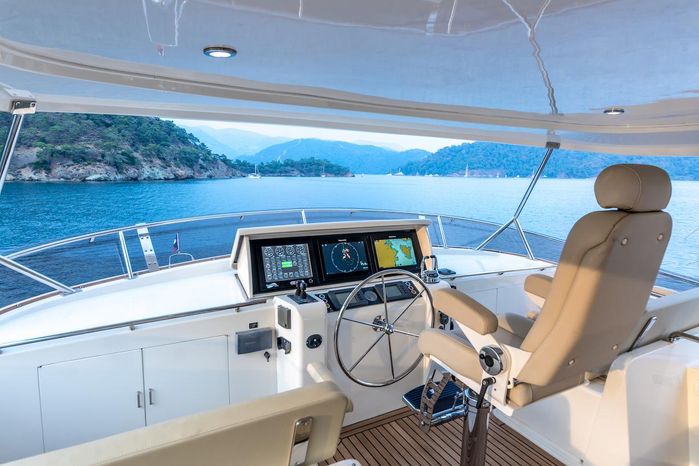

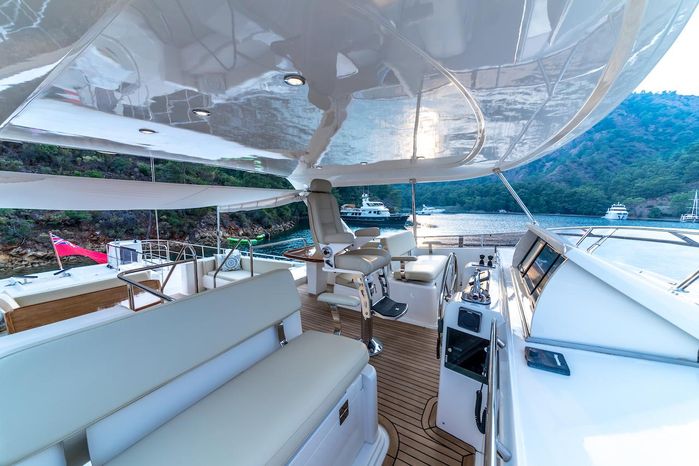

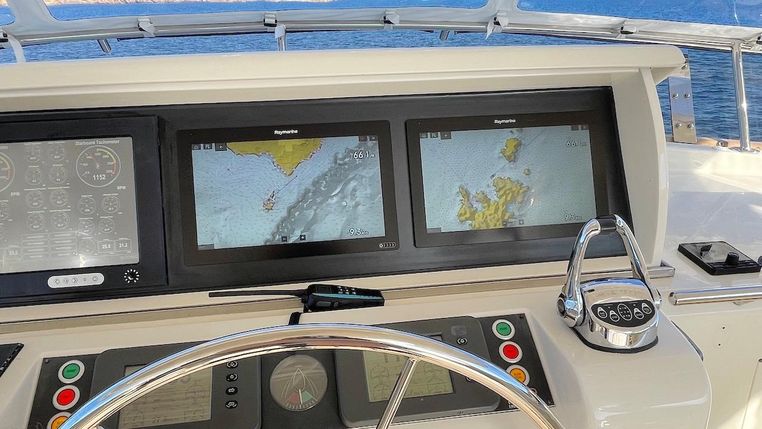

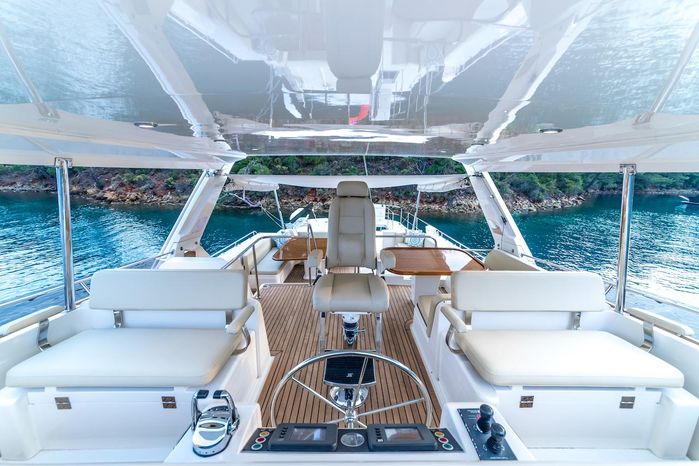

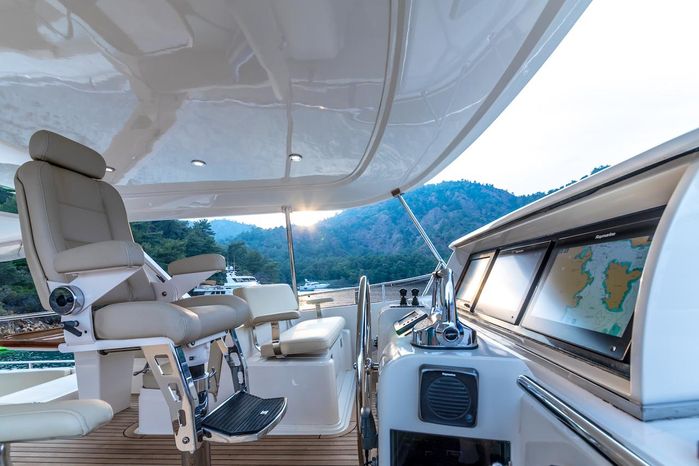

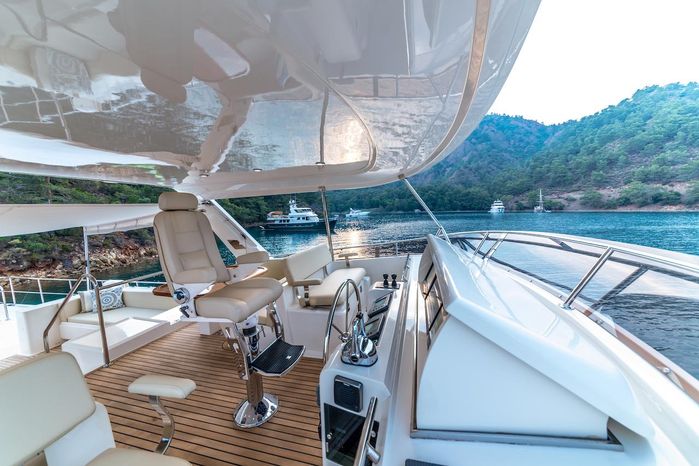

Two-level with: L-settee, bench seating, Stidd helm seat

Control station with electronic controls and engine display panels, alarm repeaters, and rudder angle indicator Raymarine repeaters

Retractable electronics console housing Raymarine RL80C Radar and twin 16” Raymarine Axiom XL Plotters. Maretron screen, ICOM VHF, Caterpiller engine screens, ABT TRAC screen, Raymarine Autopilot controller.

Venturi windshield

Radar arch

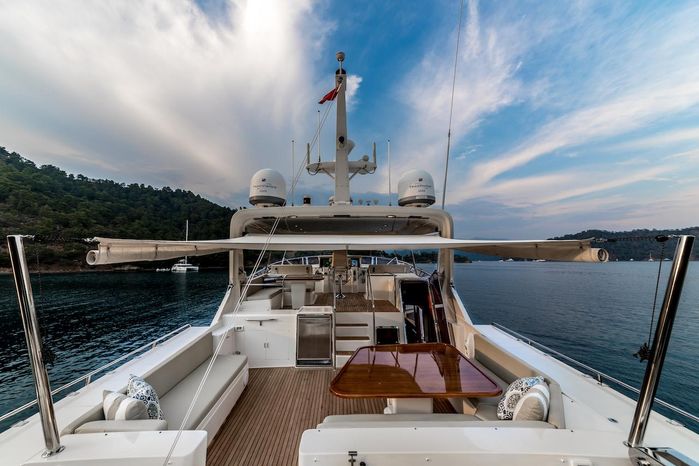

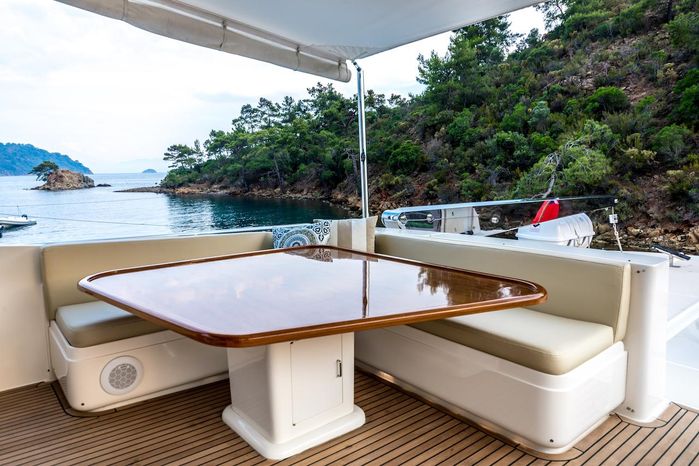

The lower level has straight and L-settees and a table with Corian top

Entertainment center with two electric BBQs, sink, and combo refer/icemaker

Boat deck with access from the flybridge and from the California deck

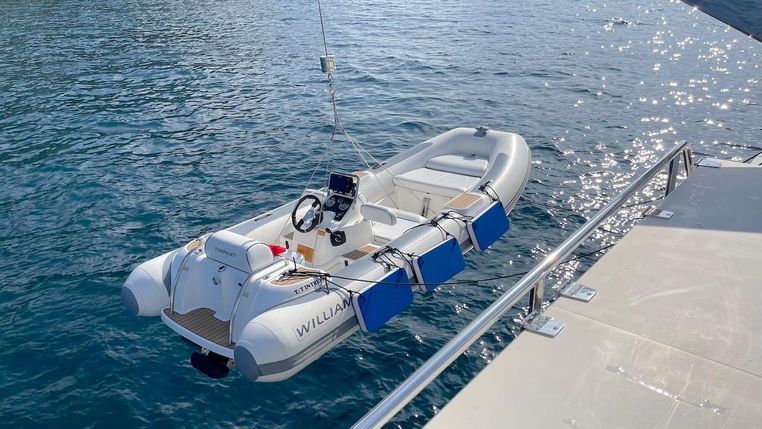

S/S davit 650kg capacity 14’ long with hydraulic lift, luff, and slewing

Bimini for the flybridge seating area

Covers for all seating areas

Aft Boat Deck control station

Flybridge Refit

2 x New Caterpillar engine screens (2023)
Raymarine P70 Autopilot controller (2023)
2 x Raymarine Axiom XL 16" Chart plotter (2021)
Icom RC M605 Command mic. second station (2021)

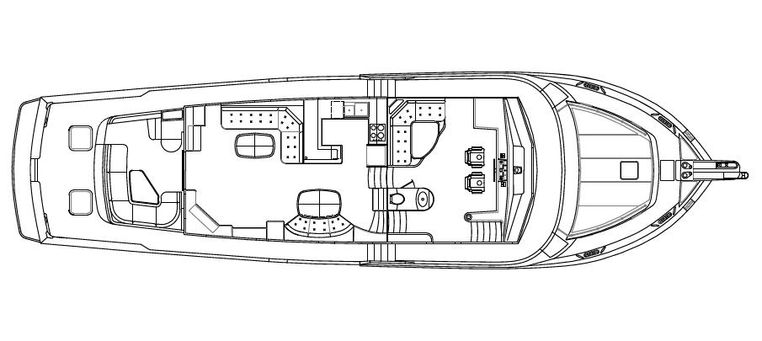

Main deck – General

Reverse Cycle Cruisair Air Conditioning throughout

Full Webasto Diesel Heating throughout the boat including Engine room

Teak and holly soles throughout

Recessed lights with Xenon bulbs

Wood mini blinds in recesses

Ultra-Suede headliners

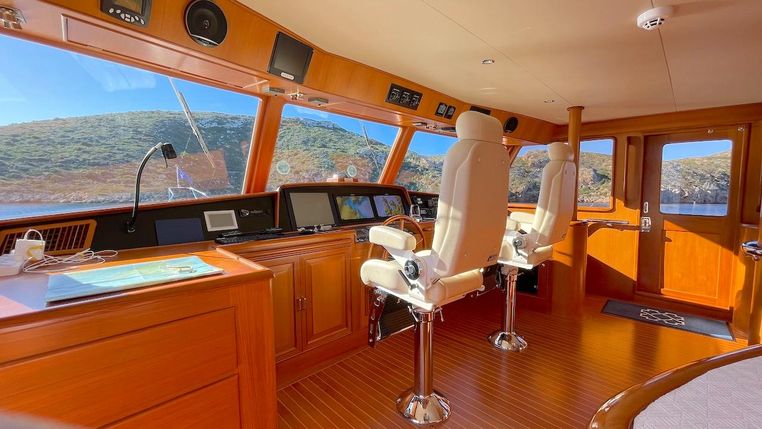

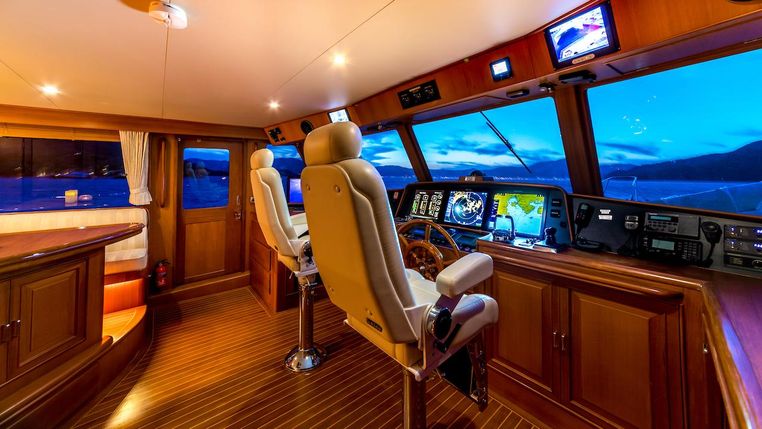

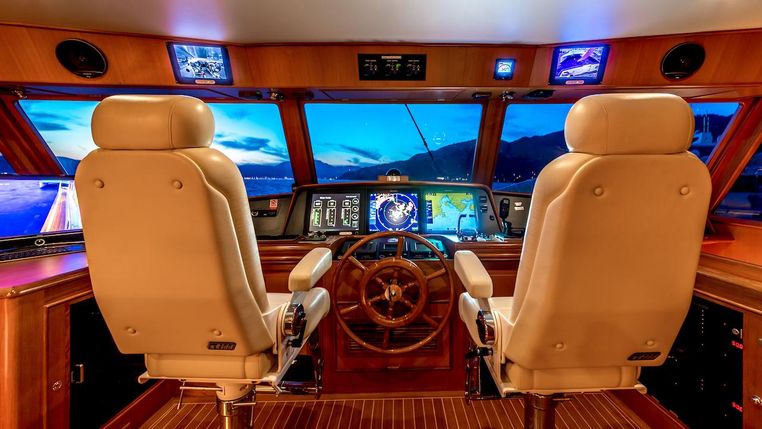

Pilothouse

Chart table with chart light and drawers

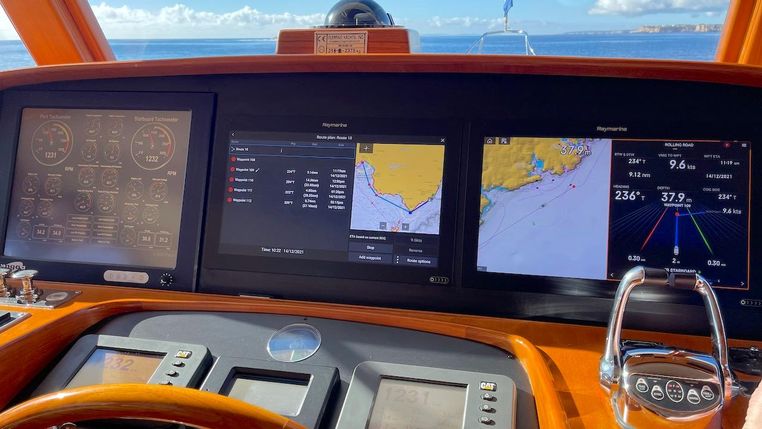

2 x Raymarine 19inch Axiom XL chartplotters

Radar, instruments, Autopilot, VHF

Maretron system with integrated engine data and all electrical information

Backlit AC, DC, and advisory panels

Engine instrumentation panel

Glendinning electronic controls

2 x Stidd helm seats in Cream Leather

L-settee on a raised platform with a large teak table

Day head with toilet, washbasin, and opening portlight

Stairs down to the galley

Pilothouse Refit

Dometic Water Maker control screen (2023)
Two new computers for Maretron system (2023)
Raymarine AR200 Augmented reality (2023)
CERTA C400 UPS (2023)
Raymarine Class A Transceiver AIS 4000 (2023)
2 x New Caterpillar engine screens (2023)
2 x Raymarine Axiom XL 19" Chart plotters (2021)
Navtex NAV6 (2021)
Raymarine i70 MFD (2021)
Raymarine p70 Autopilot control (2021)
Icom M803 MF/HF Marine SSB (2021) with Dynaplate (2023)
Icom VHF Class D M605 (2021)
FLIR JCU 2 control kit (2021)
New crew covers to helm seats and seating areas (2021)
Table pilothouse varnished (2019)
New headlining (pilothouse & bunk cabin) (2019)

Galley

Granite work surfaces in Black Galaxy

Under-mount composite double sink

Insinkerator

Miele oven, warming drawer and dishwasher

Convection  microwave Whirlpool AVM

Frigoboat refrigerator with freezer

Miele induction hob with custom s/s pot holders

Ample drawers and locker with overhead storage lockers

Galley Refit

Miele compact oven with steam function (2023)
Miele warming drawer (2023)
Miele Induction hob (2023)
Miele dishwasher (2023)
Frigoboat Fridge/ Freezer (2023)
Additional galley spotlights (2023)
Hotplate (2023)
Insinkerator Evolution (2023)
Nespresso Virtuo coffee machine (2023)
Various galley equipment (2021)-(2023)

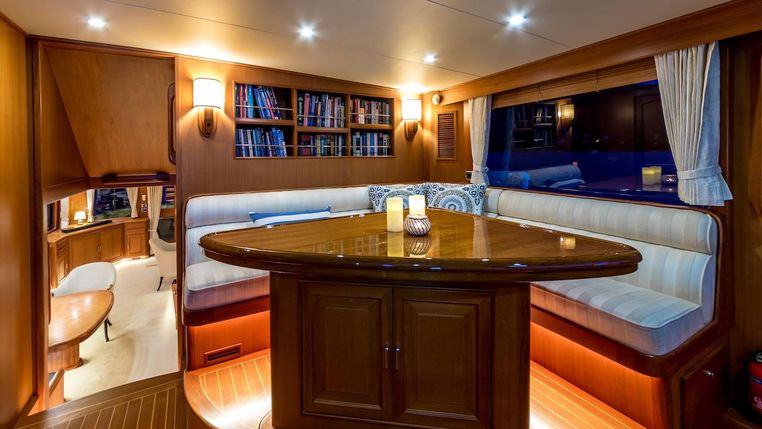

Dining area

Large teak oval dining table

Curved banquette seating with loose dining chairs

Sideboard with etched glass doors

Custom overhead lighting fixture with concealed and dimming lighting over the table

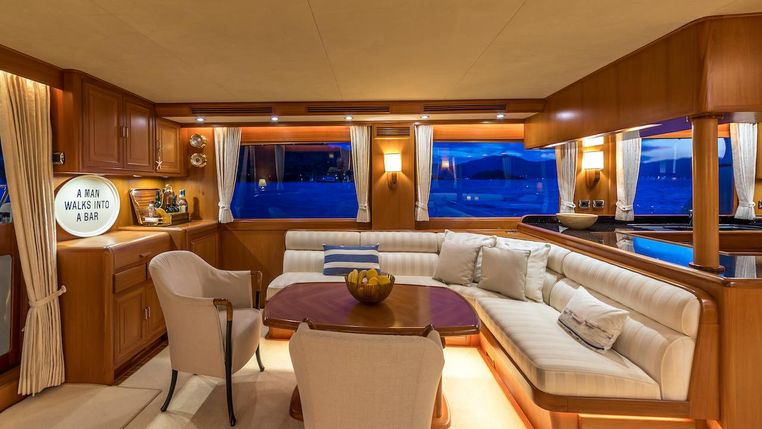

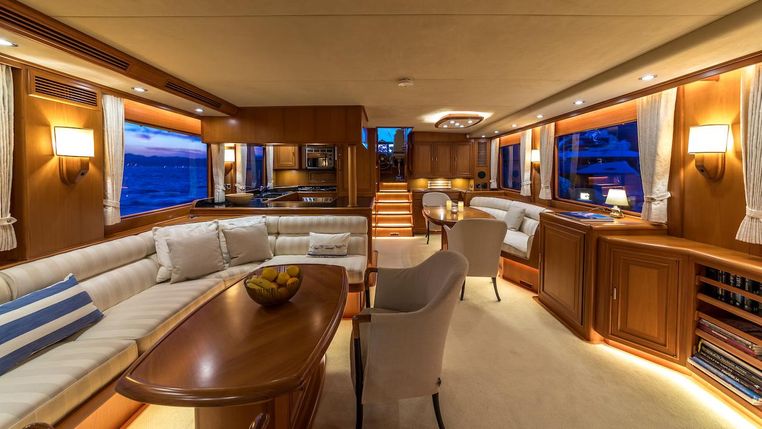

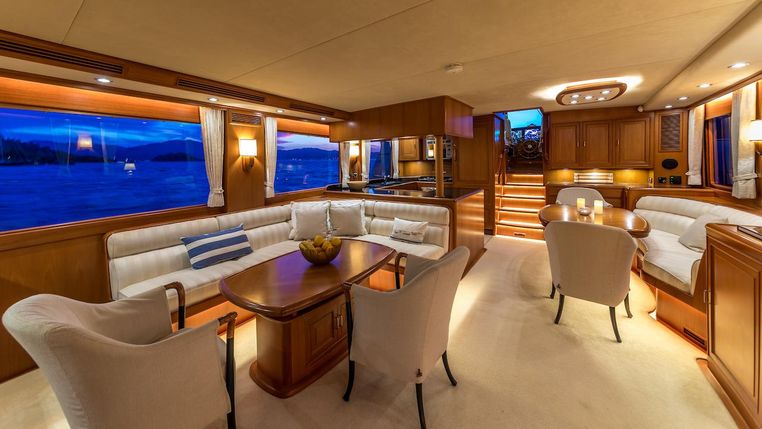

Salon area

TV cabinet at starboard aft corner

L-settee with coffee table to port

Bar cabinet with teak work surface,  bottle storage

Teak coffee table

Ultra-Suede headliner

Aft sliding door open to covered California deck at the same level as the salon

Salon Area Refit

Soft start for air conditioning in Salon (2023)
Samsung 43" Smart TV (2021)
SONOS ARC ATMOS sound bar (2021)
SONOS Amp (2021)
SONOS Sub (2021)
2 x SONOS One speakers (2021)
2 x SONOS Move speakers (2021)
TP Link 4G Mobile travel Wi-Fi router (2021)
New fabric on the 4 Giorgetti chairs (2018)
Saloon fridge AEG (2017)
Carpet saloon and galley (2016)

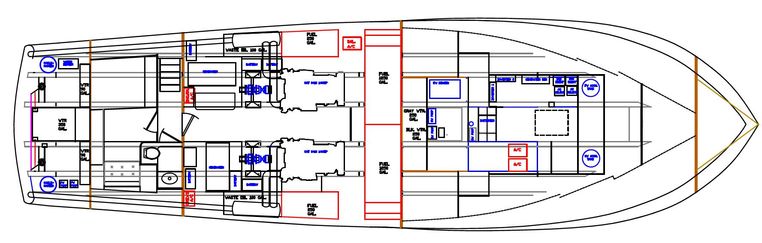

ACCOMMODATION

General

Teak and holly soles

Teak paneling and Ultra-suede wall coverings

Ultra-suede headliners

Beveled mirrors

All staterooms en-suite

Hanging lockers with auto light and louvered doors

General Accommodation Refit

New mosquito screens for all port lights (2023)
All port light shutters fitted with new gas struts (2023)

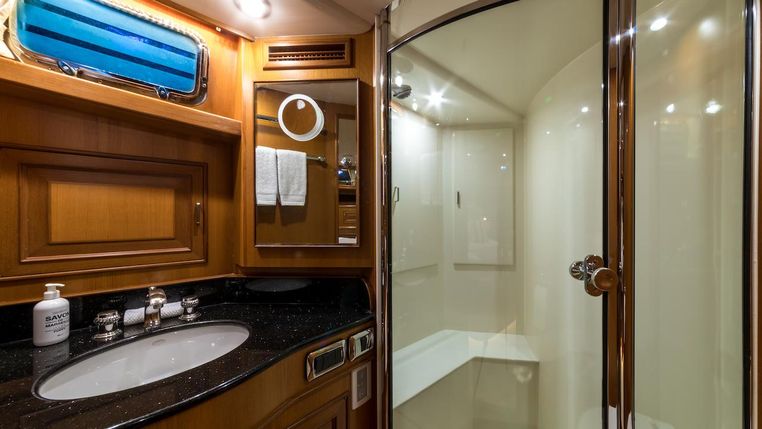

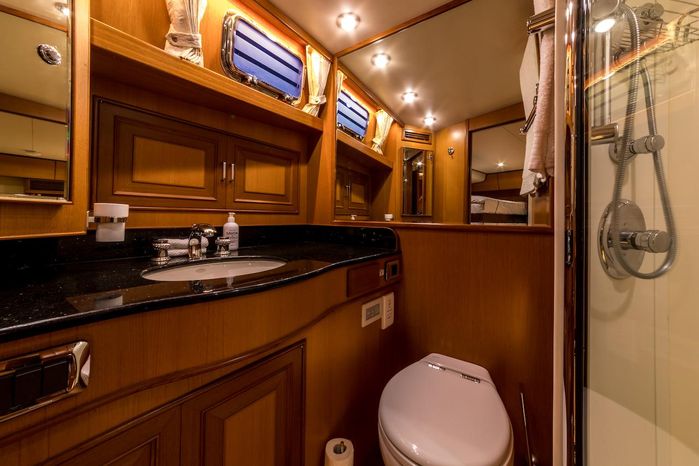

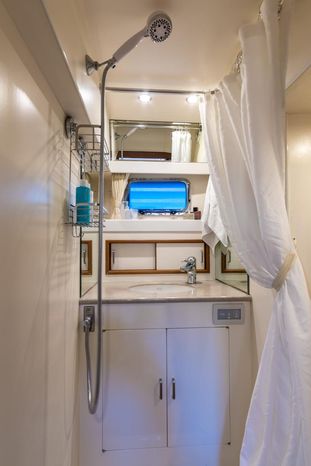

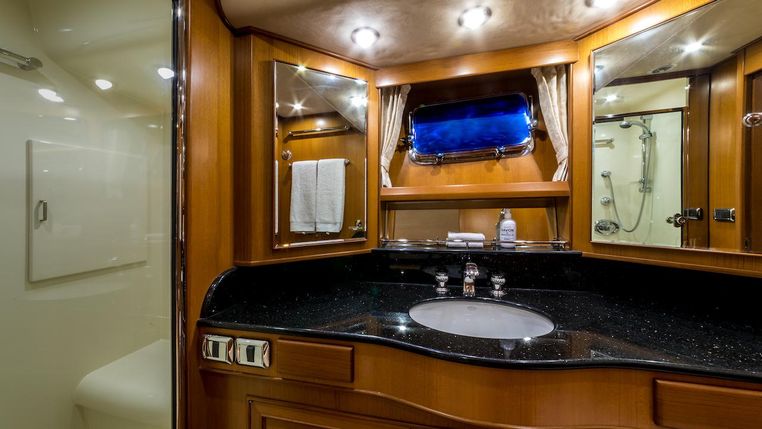

Heads

Ventilation blowers

Fibre-glassed shower enclosures with glass and s/s partitions

Shower pans

Temperature and pressure-compensated shower mixer valves

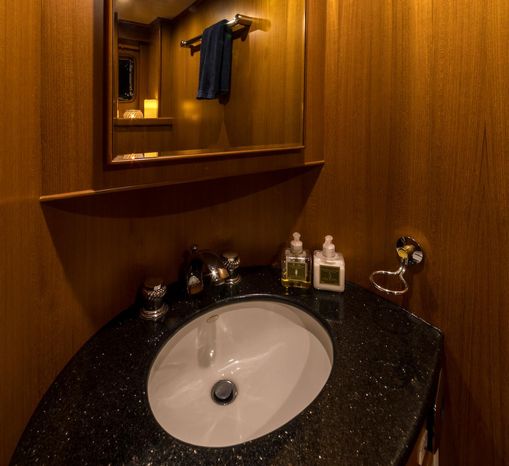

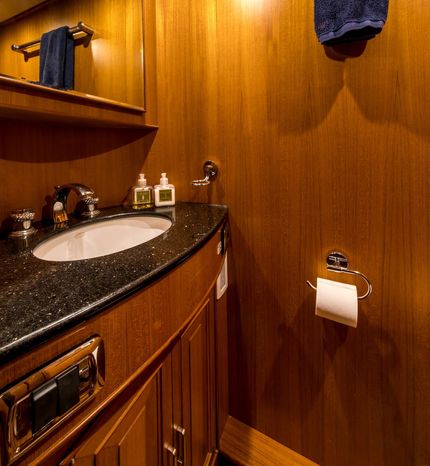

Granite countertops with under-mount ceramic basins and designer faucets

Medicine cabinets

Heads Refit

All heads overhauled including new intake and discharge hoses (2023)
New Tecma toilets (2016)

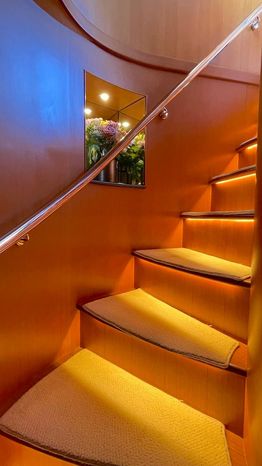

Lobby

Reached from p/house by stairs with shelve and increase in width as they descend

Custom overhead light fitting with dimmer

Security s/s vertical post

Hatch to machinery space

Access doors into master, VIP, and guest staterooms

Lobby Refit

Miele condensing tumble dryer (2023)
Miele washing machine (2023)

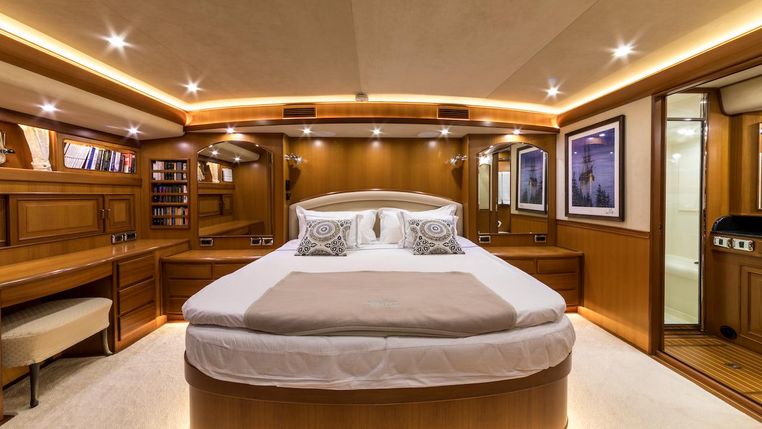

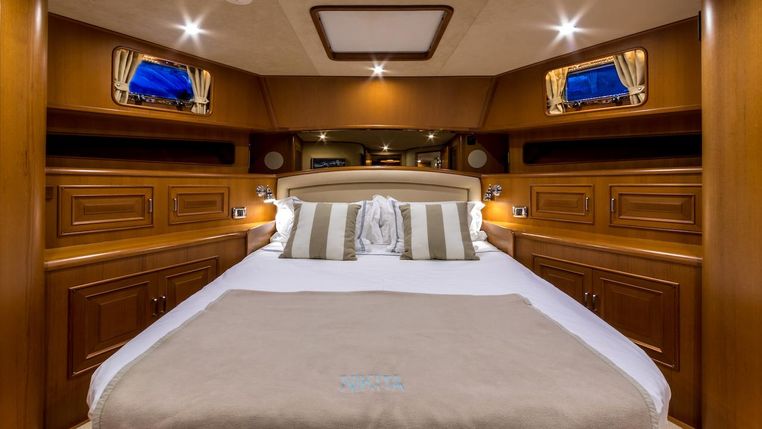

Master Stateroom

Master has a tapered king bed which opens hydraulically for storage under

Walk-in closet

Desk and twin bureau

Sliding door to en-suite head and shower

Master Stateroom Refit

Additional makeup mirror fitted (2021)
Bilge space storage shelving fitted (2021)
Full bamboo linen set (2021)

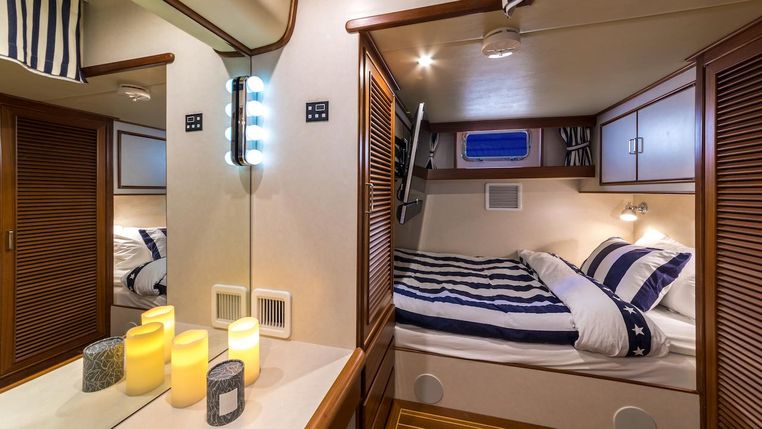

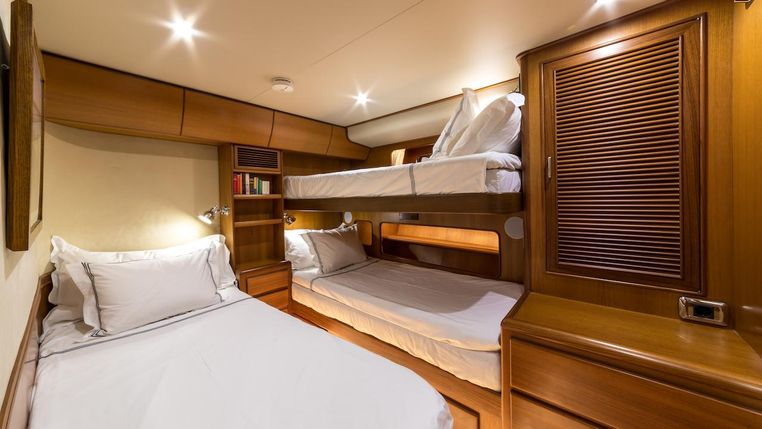

Guest Stateroom

Twin beds with additional single pullman over (3 beds)

Sliding door to the ensuite head

Guest Stateroom Refit

Full bamboo linen set (2021)

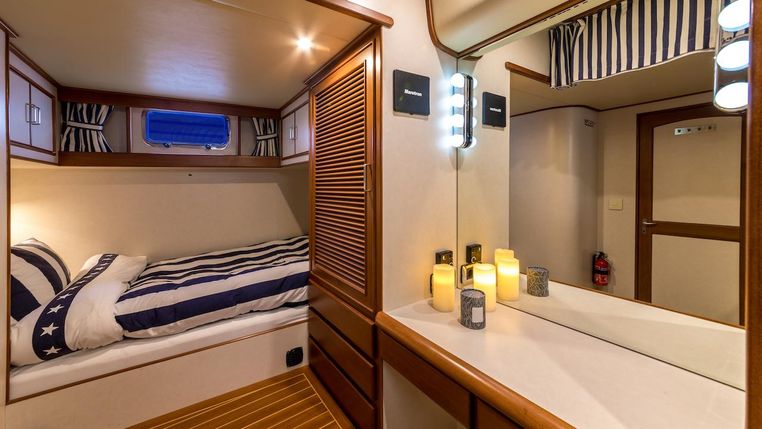

Extra bed made in the bunk cabin (2016)

VIP Stateroom

Tapered Queen bed with storage under

Skylight with remote-controlled insect and black-out screens

Two hanging lockers-auto light

VIP Stateroom Refit

Overhaul of the overhead blind (2023)
New Alcantara headlining (2021)

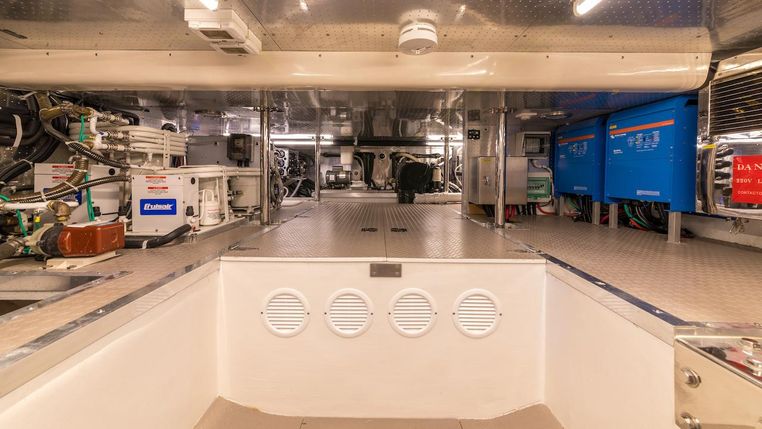

Machinery Space

Machinery Space (accessed from fwd lobby)

150 Litre stainless steel water heater

Black water tank and pumps

Fresh water and sea water pumps

Grey water tank and pumps

Storage lockers

Inverters

Bowthruster and associated hydraulics

AC and DC lighting

Bilge pump

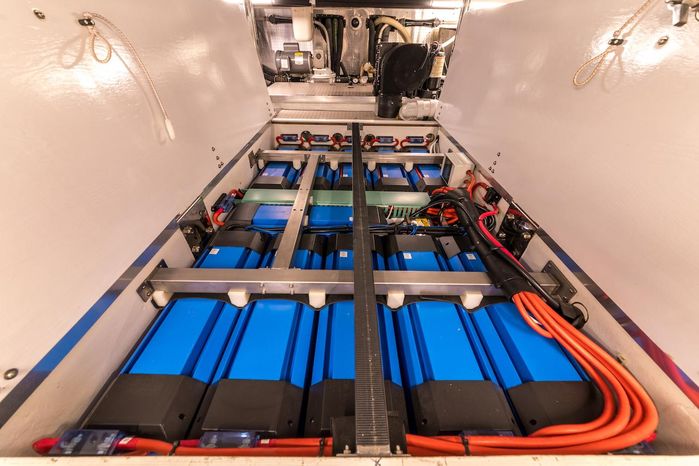

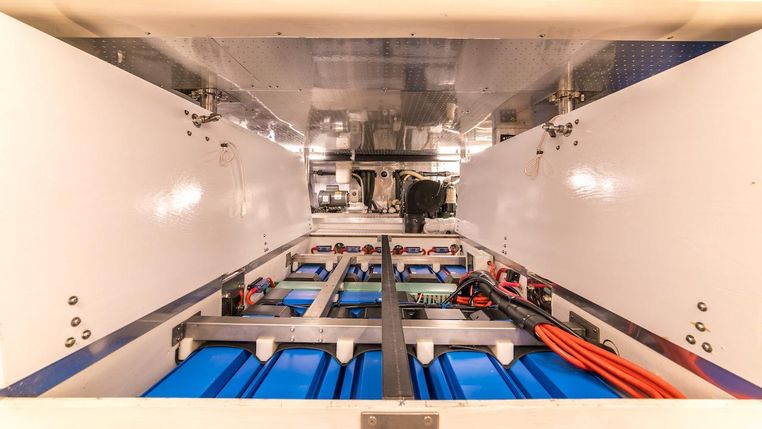

House battery bank

AC system control equipment

Air conditioning equipment

Fire detection and suppression systems

Machinery space is ventilated and sound proofed

Sump pump

Machinery Space Refit

ABT TRAC Bow thruster gearbox replaced (2023)

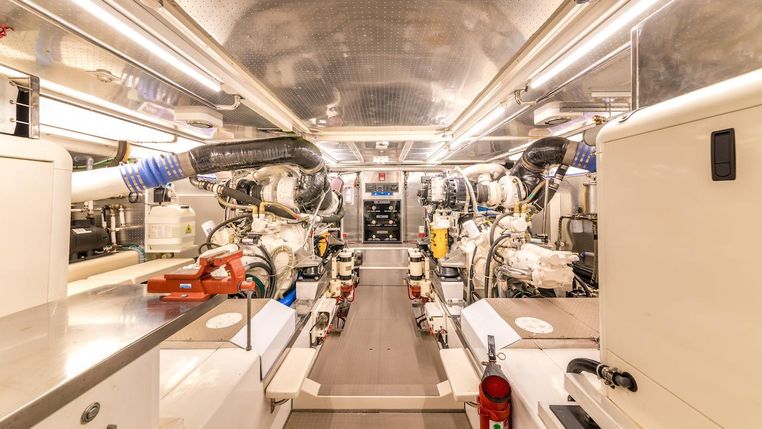

Engine Room

Accessed from aft lobby via stairs down from port side-deck

Full standing headroom

Engines with Aquadrives

Fiberglass drip pans with lighting

2 x Kohler 28kW 230V 50Hz generators (1934 & 1854 hrs)

Workbench with stainless steel top and storage drawers

Spare parts storage bins

Bilge pump

Pacer Emergency Hydraulic Bilge Pump

Sump pump

Primary and backup Fresh water pumps

Exhaust system using U.S-made components

3,000 gals of fuel (in 4 FRP tanks)

Fuel transfer system with pump, filter and fuel flow totalizer

Lube oil transfer system

Fire detection and suppression system

Freshwater fill hose

Stabilizer actuators

Engine and generator start batteries

Engine Room Refit

Comprehensive engine service including heat exchanger overhaul (2023)
Various tools and spare parts (2021)-(2023)
New Ambassador rope cutters on both sides (2023)
Stabilisers fully serviced (2023)
2 new cooling pumps for hydraulics (2019)
Heat exchanger for the hydraulics cleaned (2 spare onboard) (2019)
New water pumps on both generators (2019)
New exhaust elbow (2019)
New auto pilot pump (2018)
2 new steering ram (2018)
2 new oil coolers (2018)
Engine room fan -one new and one spare (2018)
New Glendinning System control boxes and 3 new controls (2017)

Steering

Hydraulic Power assisted with twin rams and pumps on both engines

Solid s/s rudders of axe-blade type with Aqualloy 22 high-strength stocks

Destroyer-type steering wheels at flybridge and pilothouse

Pilothouse steering wheel has teak grips

Steering Refit

Hydraulic steering oil coolers replaced (2023)

Propulsion and Transmission

Twin Caterpillar C18 1000hp each diesel engines,  total 2000hp

Transmissions ZF #195 2.5:1

4-blade Nickel Aluminum bronze propellers with BAR of 1.0

Shafts Aqualloy 22 Hi-strength

Aquadrive anti-vibration systems

Shaft seals cast bronze of traditional type using Buck Algonquin dripless packing system

Groco sea strainers on engines and gensets

Recessed I-struts in tunnels with cutlass-type bearings

Propulsion and Transmission Refit

Overhaul Aquadrive CV couplings (2023)
Stuffing boxes re-packed (2023)

Fuel System

2,500 U.S gals. In one internally-divided FRP tank plus

500 gals in two FRP tanks – total 3,000USgals

All tanks have sumps and sight-gages

Fuel transfer pump with filter and fuel counter

Twin Racor 1000FG filters with change-over valve and vacuum gage on mains, drip pans under filters

Racor F500 for gensets

Fuel System Refit

Fuel polishing system installed (2023)

Lazarette

Accessed through two lockable hatches in cockpit

500 gal. water (in three tanks)

Steering gear

Crew 40 Liters water heater

Lazarette Refit

Coltri MCH6 Dive compressor (2021) with fitted padded cover (2023)
230V power outlets fitted (2021)

Forepeak

Accessed through a hatch on fwd deck and features:

Twin chain bins each with a capacity of 400 ft. (120 meters) of ½” chain

Watertight collision bulkhead

Direct overboard drain

Access to hydraulic windlass mechanism

Forepeak Refit

Anchor locker separator bulkhead replaced (2023)

Crew Quarters

Accessed from aft lobby via stairs from port side deck)

Twin hanging lockers

Wet locker

Drawers

Desk with mirror

Toilet room with Tecma head, shower, and washbasin

Escape hatch

Bilge pumps

Crew Quarters Refit

2 x New mattresses with slatted supports (2023)
Raymarine Axiom 12" Pro Hybrid touch Multifunction display (2023)
Full bamboo linen set (2021)
Air conditioning installed crew cabin (2017)

Sanitary

Tecma heads in each of three staterooms and deck head

Tecma toilet in optional crew head

All toilets flush to 250 gal FRP holding tank

Deckhead has a three-way valve to permit direct overboard discharge

Toilets can be flushed by both SW or FW

Anti-odor charcoal filters on black tank vents port and starboard to promote cross-flow ventilation

Black water tank AC discharge pump with second DC pump for backup

Sanitary Refit

24V & 230V black water waste pumps replaced (2021)-(2023)
Tecnicomar Ecomar Sewage system (2016)

Grey Water System

250 gal. FRP grey water tank with Headhunter pump

Tank level indicator

Basins and showers drain to individual sumps each with its own pump

Each pump has a 3-way valve to drain overboard or into grey water tank

Anti-odor filters port and starboard on tank vents

Grey Water System Refit

230V grey water tank pump replaced (2023)
New shower drain pumps (2016)

Fresh Water System

500 gals in three aluminum tanks in lazarette

FW pump is Headhunter Mach 5 with accumulator tank w/second backup pump

150 Litre s/s water heater with drain and pressure relief valves and mixer safety valve

Fwd and aft FW washdown outlets

Crew water heater in lazarette

Fresh Water System Refit

Dometic water maker (346L/hr) with Spot Zero (2023)
New 150L & 40L Calorifiers/ Hot water tanks (2023)
UV-treatment filter system (2016)

Sea Water System

24 VDC pump with 14 gal. accumulator tank

Fwd SW washdown faucet

Plumbing as required to toilets

Flushing line connected to holding tank

Bilge System

4 pcs. Rule submersible pumps

Whale scavenger pumps to suck sumps completely dry

Bilge System Refit

All electrical bilge pumps replaced (2021)

AC

2 x Kohler generators

Two shore inlets fwd and two aft.

Shore supply connected to Charles Isoboost transformers

Digital meters at switch panels

Panels backlit with a dimmer

Tinned copper wire used throughout

AC Electrical Refit

Additional Victron Quattro Charger/Inverter 8000W fitted (2023)
Fore and Aft Marinco Shore power inlet sockets replaced (2023)
Kohler Generators serviced (2023)
Kohler generator exchangers overhauled (2023)
Kohler generator sound proofing replaced (2021)
2 x Victron Quattro charger/Inverter 8000W (2017)
Emergency power inverter charger 220V (2016)

DC

Main ships system is 24V DC

12V DC available via DC-DC converters with 12V battery backup on the flybridge

Battery disconnect and selector switches are accessible from outside e/room

Lithium-ion Batteries 1980 A/h

3 x Victron Quattro charger/Inverter 8000W

Two additional high-output auxiliary alternators on the main engines

Additional 24v DC batteries for each engine charged by original alternators plus a dedicated battery charger

Switching allows paralleling of batteries

Battery condition indicator

DC load distribution panel with breakers and meters back-lit with dimmer

Alarm panel for engine functions plus bilge, fire, raw water etc. Repeater panel at crew lobby

Lights on an advisory panel for key pumps and e/room and m/c space lights

DC ELECTRICAL REFIT

New 24V to 12V converter in Flybridge helm (2023)
All LED-lights throughout the boat (2017)-(2019)
New Air conditioning for the battery boxes (2018)
Lithium ion Batteries 1980 A/h (2017)
2 new heavy duty alternators size 400A x 2 (2017)

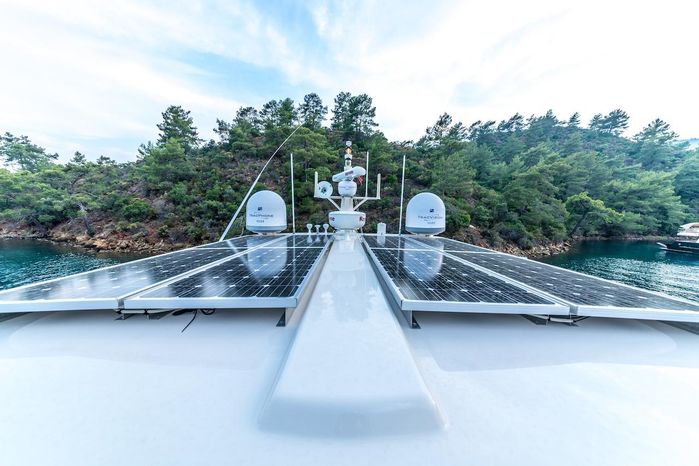

Solar panels on the hardtop - 8x150W (2017)

Electrical Bonding

Copper strapping and cable connecting thru-hulls and underwater components

Zincs

American Bowthruster central hydraulic system using variable displacement pumps on both engines

This dual system powers:

12 sq. ft stabilizer fins with winglets

60 hp 16” diameter bow thruster

30 hp Stern thruster

Twin Maxwell anchor windlasses

Hydraulic System Refit

ABT TRAC hydraulic serviced (2023)

Maretron, Fuel, water, grey- & black water gage connected to the whole AC/DC and camera system, etc. One computer is connected to only this system.

Seven cameras – port side, starboard side, stern, bow, boat deck, engine room & machinery room.

Pepwave wifi with boosters throughout the vessel, 2pcs antenna on the mast. .

Fibaro smart home system all over.

Bose soundtouch system allover.

Electronics, computers, monitoring and Wi-fi Refit

2 x Dell Windows PC's (2023)
7 Hikvision CCTV cameras (2021)-(2023)
Pepwave Wi-Fi multi LTE router (2021)
KVH Tracvision V30 Satellite communications (2021)
Shakespeare 4018 9dB VHF antenna 5.8m (2021)
Anchor LED light - Lopo (2021)
FLIR M364C Pan tilt zoom Thermal camera 640 x 512 and HD low light (2021)
New Bose entertainment system in all cabins, FB and cockpit (2017)
New radar (2016)
Maretron system with integrated engine data and all electrical information (2016)

Tenders and Deck Equipment Refit

Williams serviced (2023)
Takacat T460 LX inflatable catamaran (2023)
Tohatsu MFS20E 20Hp outboard (2023)
Polyform F7 fenders (2023)
Megafend inflatable fenders x 10 (2023)
Custom leather clad and sheepskin lined stainless steel fender hooks (2023)
Williams tender cover (2021)
Icom M400 BBE Black box VHF with Command mic. and new antenna (2021)
New Williams Turbo Jet 445 (2017)

Note - Owners personal Yamaha WaveRunner with cover and Inflatable towing toys not included with sale.

Safety Refit

Lalizas 6 Person valise liferaft (2023)
Heat and Smoke, Carbon Monoxide, and PIR detectors (2021)-(2023)
Seafire Automatic Fire extinguisher system in Engine room and Machinery space overhauled (2023)
Echomax Radar reflector (2023)
All handheld fire extinguishers replaced with Water mist fire extinguishers (2023)
Carbon dioxide fire extinguisher in engine room (2023)
Lithium specialist fire extinguisher on boat deck (2023)
Dry powder fire extinguishers for Williams and Jet ski (2023)
Smoke hood x 7 (2023)
Fire blankets x 4 (2023)
EPIRB x 2 (2021)
SEAGO MOB Devices x 2 (2021)
Floating throwing lines x 2 (2021)
12 x Immersion suits (2021)
Offshore Flare pack (2021)
Plastimo Transocean 8-person valise liferaft (2021)

Nicolle Associates offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

• This vessel is EU VAT paid.
• As always photographs do not do justice so a viewing is highly recommended.
• This vessel is lying in Southampton, England.
• (C) 2023 Nicolle Associates
